Figure 1: local ground plane under G-LINK


To prevent any problems with signal quality or EMC with the G-LINK HDMP1024, I've made a real effort to get the design of that part right.
I had asked a few people inside and outside CERN about possible problems with the G-LINK, as there are different 'schools' of how to use the chip. I got the following responses: There are no application notes from Hewlett Packard about special precautions to take; only one diagram is shown in the datasheet where basically each power pin has its own decoupling capacitor. I tried to talk to an application engineer from HP, but could not reach any.
As many of the methods described above didn't appear to be sound (for signal quality reasons), and as also some of those recommendations may add cost and complexity, I had another approach for the design of the PCB.

Local Gnd plane on the top

My method of the PCB layout for the G-LINK chip is to have a separate local ground plane directly on the top layer (see fig.1,2). This ground plane is connected with about 20 vias (14 inside the plane, 6 outside) to the real ground layer. Note that this ground plane is solidly connected to the other ground plane, and is not decoupled from it in any way as one sometimes sees.

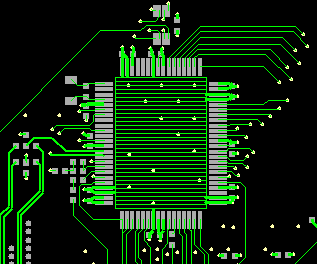

Figure 2: PCB layout around G-LINK, top layer
Note the solid copper ground plane under the G-LINK and the vias that connect it to the internal ground plane. Also note that the decoupling capacitors are connected to both the local ground plane and with a via to the internal ground plane

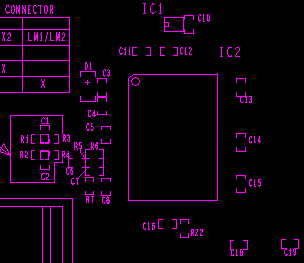

Figure 3: Silkscreen around G-LINK, top layer
Note the eight decoupling capacitors connected very close to the G-LINK
This method of the local ground plane on the top is for free, while it has several advantages:
  1. the G-LINK Gnd pins are connected directly (and not through a via) to the ground plane, therefore reducing ground bounce
  2. there is less EMC radiation and susceptibility as the local ground plane is very close to the G-LINK package and the actual chip
  3. the G-LINK is well cooled as it has directly a copper plane under it and the many vias distribute the heat directly to the Gnd plane

Decoupling capacitors very close

To give a robust power supply to the G-LINK, physically very small (of the 0603 type) SMD 100 nF capacitors, which have a very low series inductance, have been used to bypass the Vcc supplies of all Vcc pins. These capacitors are put very close (less than a few millimeters) from the G-LINK ground and power pins. The capacitors are connected in between vias (to Gnd and Vcc) and the G-LINK pins (see fig.2).


The functioning of the board has been tested extensively with the help of a Japanes G-LINK board and a SLITEST, but no tests have been made of noise on the Vcc lines or EMC susceptability. I expect that measurements will be very difficult and will give no results, unless also a comparison board is made in which the layout is much different.

Figure 4: Lab setup during temperature tests. Note the shields to reduce the airflow

Figure 5: detail of temperature tests. Note the plastic cover.
The pot of glue puts pressure on the temperature sensor.
With the PCB placed horizontally and shields around it to prevent any airflow from the side (the top is still open), in an ambient temperature of 22 °C, the temperature of the G-LINK case got upto 60 ±2 °C, while the PCB around the G-LINK was 37 ±2 °C . With a very slight airflow from a small fan placed 30 cm away, the temperatures got immediately down to 47 ±2 °C and 32 ±2 °C respectively. As the G-LINK is specified with a case temperature Tc up to 85 °C, I don't believe it is necessary to put a cooling tower on the G-LINK. During those measurements the G-LINK received FF/00 data running at 50 MHz (around 1 Gbps).
In another measurement I had put a plastic cover on top of the PCB, where the PCB was placed horizontally. Shields where placed 10 cm from the PCB to prevent any forced airflow. The bottom of the PCB was 10 mm away from the motherboard PCB. With this, the temperature of the G-LINK chip did not rise above 76 °C. This means that with the little free airflow at the bottom of the card was already enough cooling to stay within temperature. Normally of course one will have air flowing on both sides of the card. The board even works with a Vcc of 4.0 V and up to 5.7 V it has been tested OK! In those cases (still with the cover on top of it) the case temperature was 57 °C and 93 (!) °C respectively. Both AA/55 and FF/00 patterns were send and checked, while also control words were sent.
Table 1: Case temperature of G-LINK (data FF/00 or AA/55 and checked to be correct)
Case temperature [°C]
(Vcc = 4.0 V)
Case temperature [°C]
(Vcc = 5.0 V)
Case temperature [°C]
Vcc = 5.7 V
Slow forced airflow
No forced airflow
G-LINK and top of PCB covered

The transmitter board (G-LSC)

A similar layout with the local ground plane has been used for the transmitter board, using the HDMP-1022 chip. The only difference is that 1206 size capacitors have been used, which are a factor of two larger in size than the 0603 size used on the receiver board. Also those have been placed as close as possible to the G-LINK.
The measurement results are similar to the ones described above: the board works well with voltages in the range of 4.00 Volt to 6.00 Volt. With the G-LINK and top of the PCB covered, the HDMP-1022 runs less hot than the receiver: 50, 62 and 74 ±2°C for a Vcc of 4.0, 5.0 and 6.0 respectively.


There are rumours that the G-LINK is very difficult to get to work reliably. I've made a simple system which gives a robust power supply to the G-LINK chip which also helps in cooling the chip. With this system the G-LINK worked very reliably under varying conditions.

The precautions taken are probably overkill, but it has been shown that with those simple measures that don't add any extra cost (and possibly reduce the cost as no cooling fin is needed), one can do a design which is state of the art. It is also nice to see that the local ground plane helps to solve many problems at the same time. The design is shown to be very robust with respect to functioning with high temperatures and voltages working between 4.0 and 5.7 Volt.

A possible improvement is that the decoupling capacitors may be of a smaller value (47 nF or 22 nF) to get a resonance frequency which is higher; 100 nF is not needed as the current surges that the G-LINK needs are not that high.

Another improvement may be to have as Layer 2 (the layer under the local Gnd plane) a Vcc plane. This will form a local capacitor with a value in the order of 100 pF which will bypass very high frequencies. In the current design Layer 2 is the Gnd plane.

The above described technique of a local surface with a local ground plane directly under a chip can be used for other IC's such as PLLs and Gigabit Ethernet transceiver chips that run at a high frequency or at a high temperature.
